The ABF-260 has been specially developed for use in road traffic tunnels to form part of the public address/emergency sound system and has already been used in highly successful installations around the world.
The second generation ABF-260 features an upgraded horn with higher SPL capability and enhanced water ingress protection.
The ABF’s low profile and ability to produce high sound pressure levels with negligible distortion make it the perfect solution for low ceiling noisy environments like traffic tunnels. A single ABF is capable of covering large distances within a tunnel environment.
For tunnels with a very small vehicle envelope, an ultra low profile version of the ABF is available.
The key advantages of the ABF approach include:
Designed for tunnels – The ABF-260 has not only been designed to deliver clear and intelligible messages but also to meet the intense demands of the tunnel environment. The primary purpose of any loudspeaker is to move air and create sound. Extreme care has been taken to ensure that the unit can cope with the rigors of tunnel cleaning and sprinkler and deluge systems without compromising the performance of the loudspeaker.

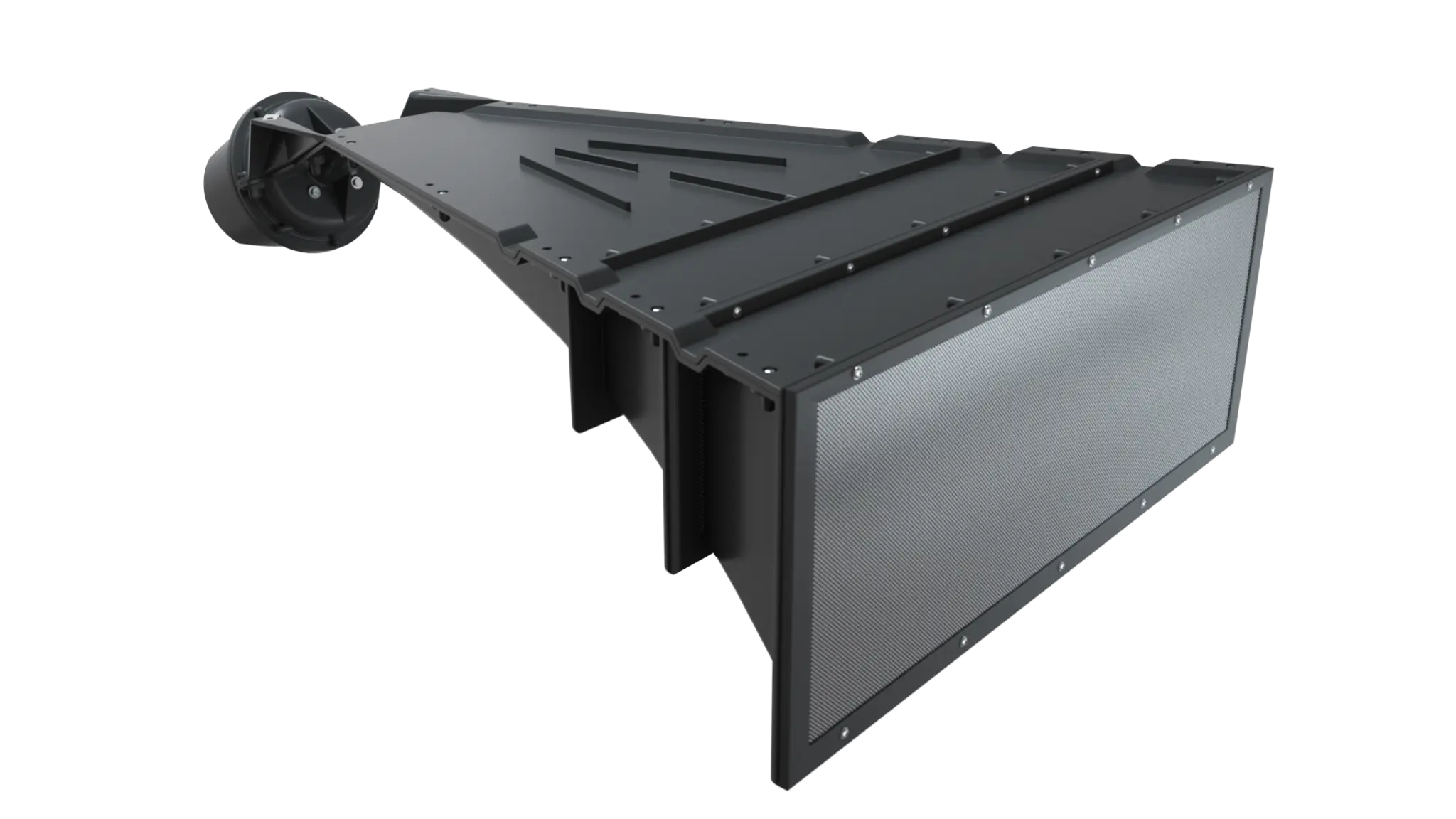

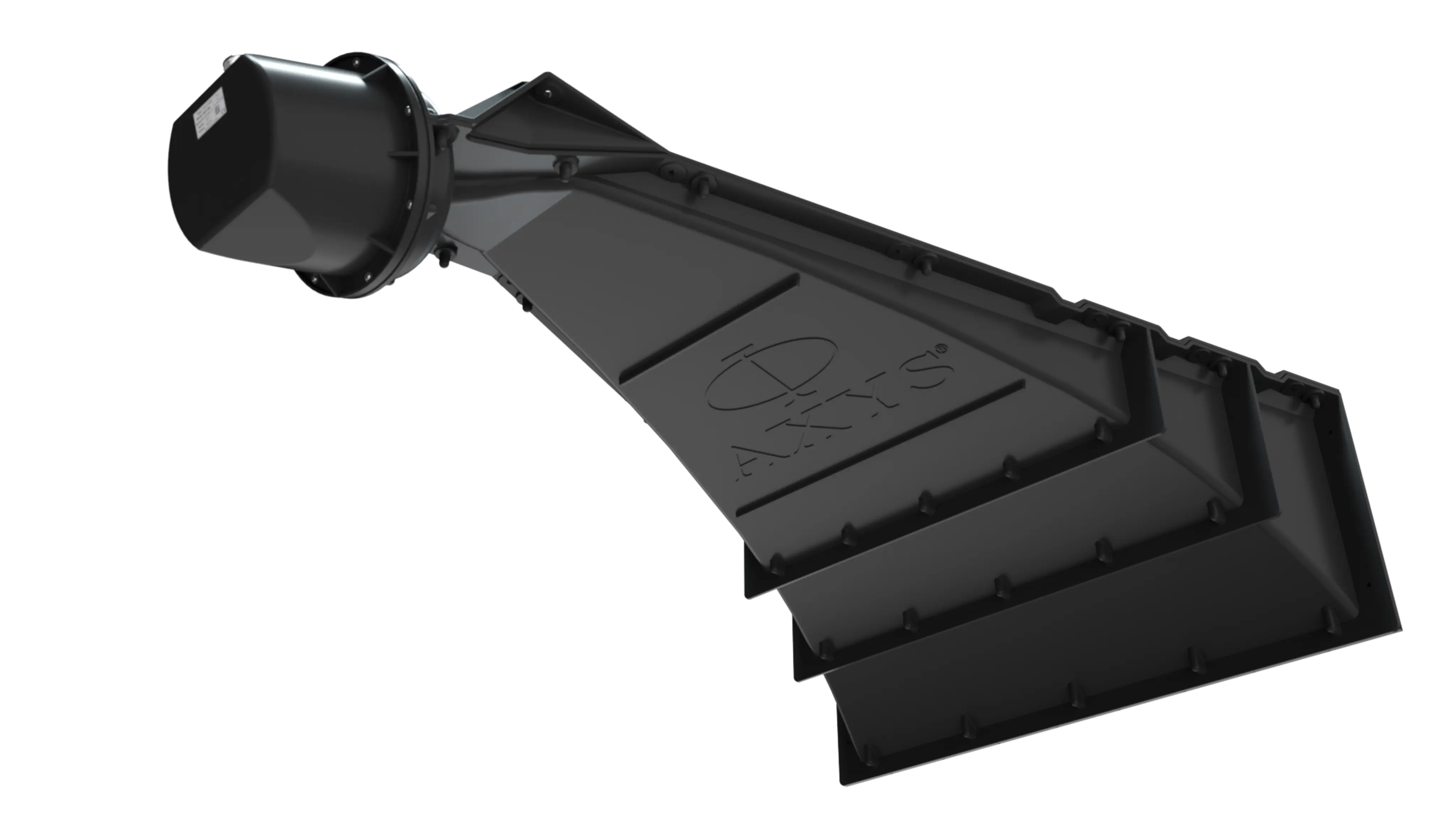

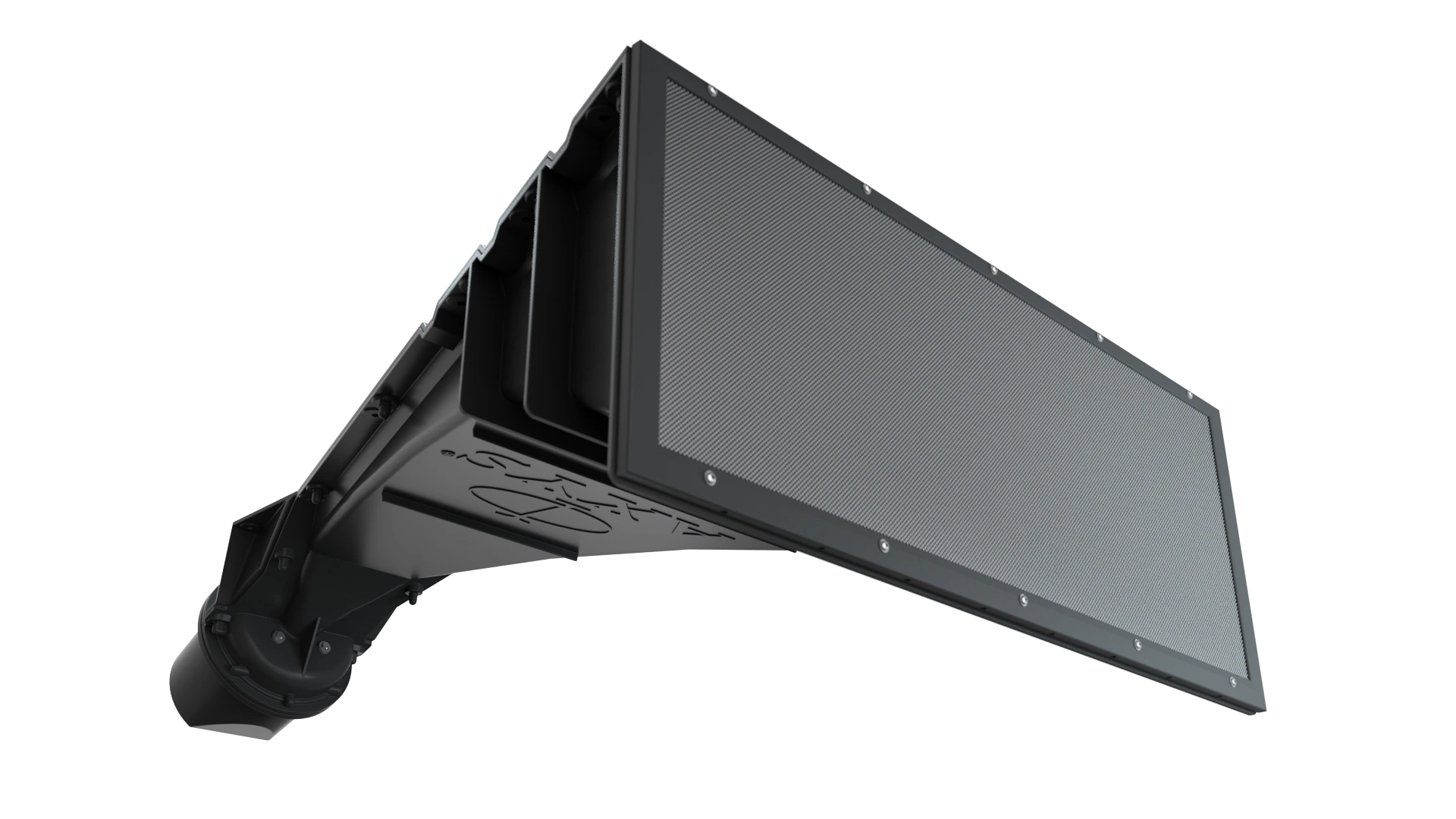

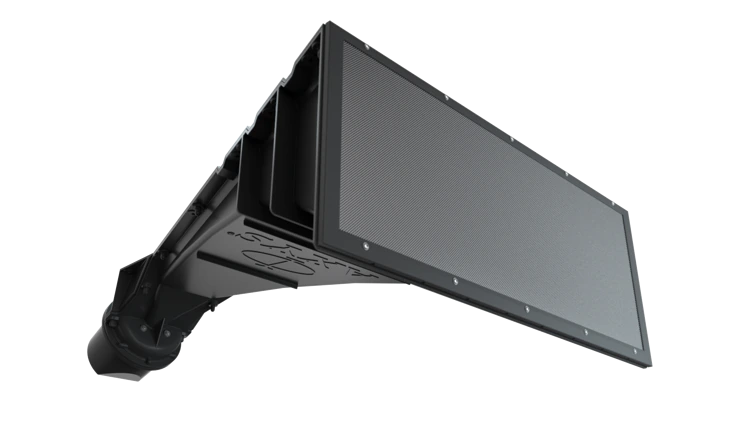

The ABF features an impact resistant flare, which is manufactured using a fire-retardant polyamide (PA 6) with flammability specification according to UL94 with flame classification V0, a 2” exit (4” voice coil) high performance compression driver that can be tapped at 50 or 100 Watts and a 100 V impedance transformer. The exit or mouth of the flare is fitted with a stainless steel grill to prevent water from entering the flare during tunnel cleaning. This grill has been specially designed so that it does not affect the acoustical performance of the ABF-260.

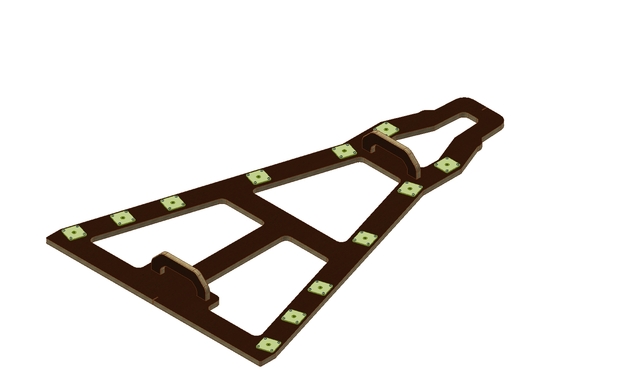

Easy to install and maintain – With ABF, there are fewer installation points compared to conventional loudspeaker systems. To assist with installation, an optional drilling template is available.
Highly reliable systems – The cost of servicing equipment in tunnels is very high. For this reason Harman Professionaluses high quality components and a thorough quality assurance system to ensure that the ABF is reliable throughout its lifetime.
Meeting standards – The ABF-260 is manufactured at Harman Professional’s Hungary manufacturing facility. This facility is both ISO 9001 & ISO 14001 certified.
