All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF
Larger Images
Features
- Highly weather-resistant IP56 rating
- Consistent 120° x 120° broadband pattern control
- Components:
• 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
• 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. - Extraordinary clarity for speech, with extended frequency response for music.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
- High-power passive crossover network.
- Overload protection
- 80 Hz – 20 kHz frequency response.
- 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
Downloads
Specifications
| Size | |
|
|
1.09 MB |
Brochures
| Size | |
|
|
5.71 MB |
updated: Jul 2024
CAD Drawings
| Size | |
|
|
10.8 MB |
|
|
284 KB |
Compliances
| Size | |
|
|
148 KB |
Simulation Data
| Size | |
|
|
24 MB |
|
|
21 MB |
User Guides
| Size | |
|
|
40.1 KB |
Ease Data
| Size | |
|
|
867 KB |
CLF Files
| Size | |
|
|
1.45 MB |
Speaker Tunings
| Size | |
|
|
557 KB |
Ease Files
| Size | |
|
|
1.36 MB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range (-10dB) | 80 Hz – 20 kHz |
| Frequency Response (±3 dB) | 100 Hz – 20 kHz |
| Coverage Pattern | 120° x 120° |
| Directivity Factor (Q) | 8.1 (1 k – 16 kHz) |
| Directivity Index (DI) | 8.4 dB (1 k – 16 kHz) |
| System Power Rating | 250 W 2 hrs. 200 W 100 hrs |
| Sensitivity (2.83V @ 1m) | 94 dB (Ave. 100 Hz – 20 kHz) |
| Maximum SPL (1m) | Direct 8Ω: 118 dB (peaks of 124 dB) 200 W Tap: 117 dB |
| Crossover Network | 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 200W, 100W, 50W, 25W100V: 200W, 100W, 50W |
| LF Driver | Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil. |
| HF Driver | 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling. |
| HF Driver Protection | Minimum audibility SonicGuard™ HF overload protection |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Attachment | Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Grille | Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. |
| Input Connection | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36") |
| Environmental | IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs). |
| Dimensions | 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back |
| Colors | Available in gray (similar to Pantone 420C) and black (-BK) |
| Net Weight (each) | 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket |
| Shipping Weight | 14.1 kg (31.0 lb) |
| Included Accessories | U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel. |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Suspension Attachment | Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
News
HARMAN Pro Insights
Exploring Why World’s Top Stadiums & Arenas Turn to JBL Pro Installed Audio
Stadiums and arenas are about much more than just delivering engaging matchups, a significant amount of time is spent designing and delivering impeccable customer experiences throughout the venue. From the time guests arrive until the moment they leave, venues need a dynamic and intelligible system
CONTINUE READING

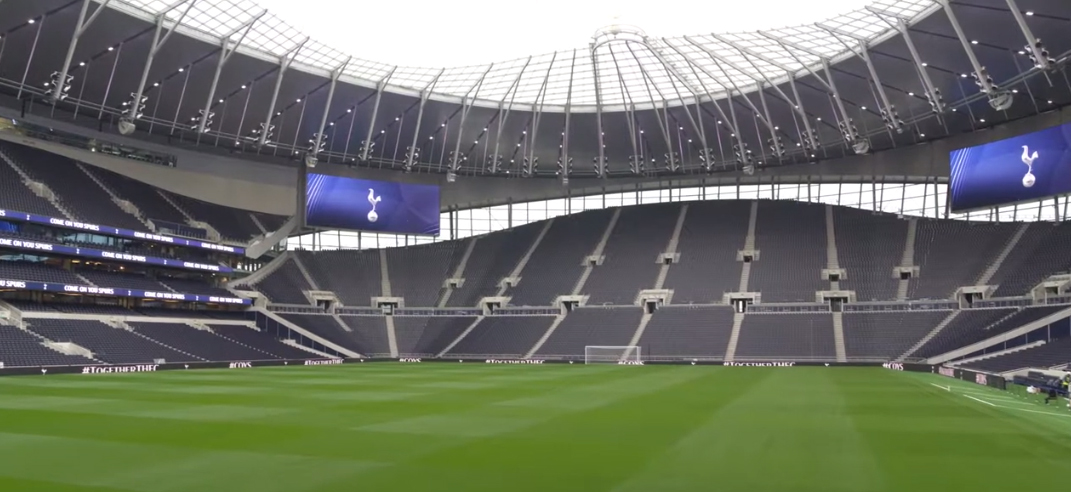

Tottenham Hotspur Stadium Goes All In With JBL, Crown & Soundcraft
