JBL Professional CSS-H15

15 Watt Paging Horn

Larger Images

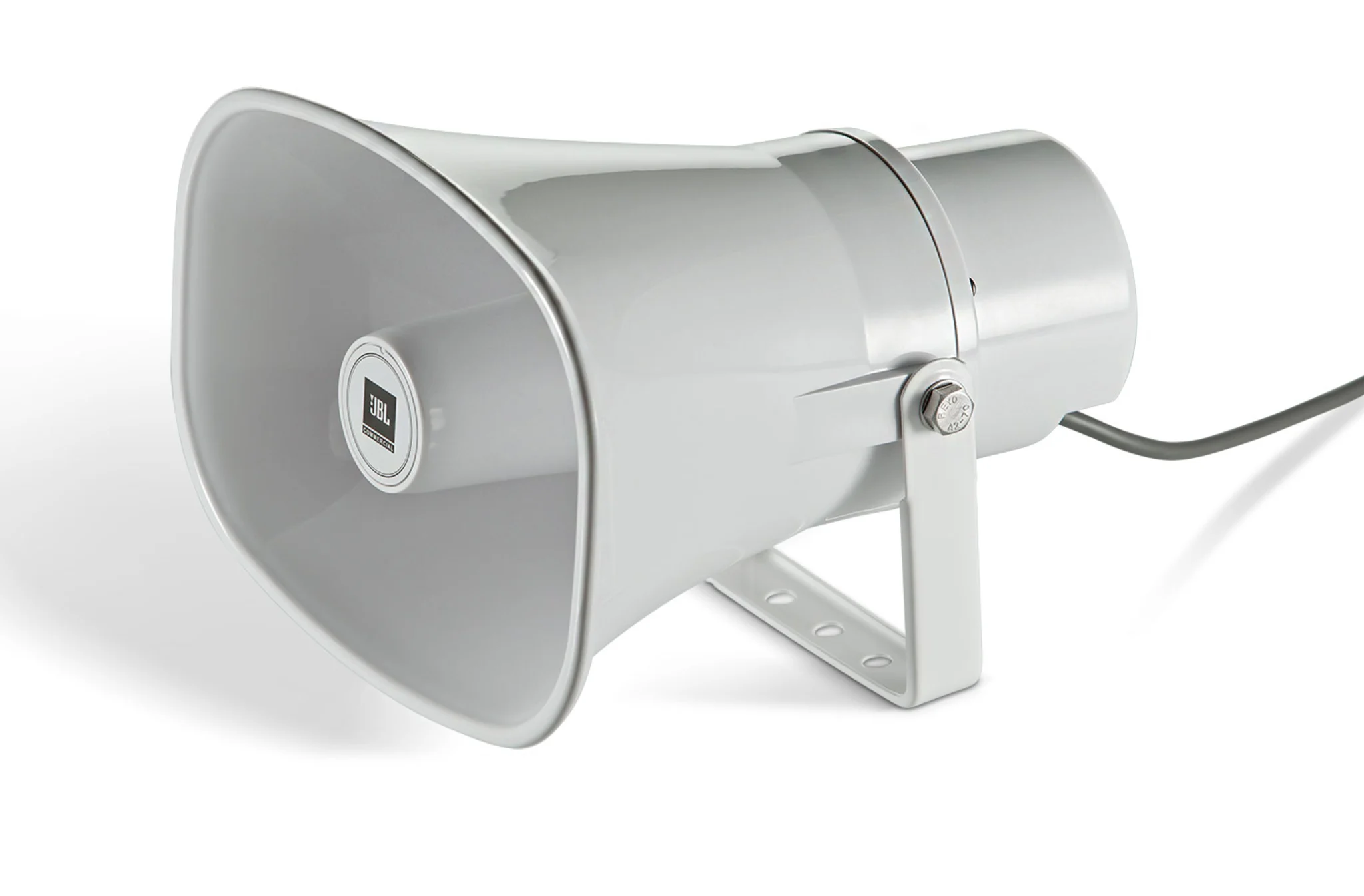

15 Watt Paging Horn

The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.



Features

  • Excellent voice range clarity for announcement and paging.
  • High sensitivity delivers high sound levels with minimal power amplification.
  • Wide 70° horizontal by 90° vertical coverage for medium throw applications.
  • Phenolic diaphragm driver for outdoor durability and high reliability.
  • UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
  • Built-in high-pass filter enhances reliability by protecting against low frequency damage.
  • Highly weather-resistant, with stainless steel bracket and hardware.


Applications

  • Public Access Areas
  • Warehouses
  • Factories
  • Schools
  • Recreational Facilities
  • Commercial Buildings
  • Distribution Centers
  • Civic Centers
  • Other Commercial Sound and Protective Signaling Systems


Downloads

  Version Language Size Uploaded
Specifications
CSS-H15 Spec Sheet
updated: Oct 22, 2020
    458 KB Oct 22, 2020
Compliances
CSS Series
updated: Oct 18, 2019
    141 KB Oct 18, 2019
Clf Files
CSS-H CLF Files
updated: Oct 22, 2020
    61.5 KB Oct 22, 2020
CLF Files
version 03-16-20, updated: Mar 16, 2020
03-16-20    22.5 MB Mar 16, 2020
Ease Data
    20.5 MB Jul 08, 2019
Speaker Tunings
    557 KB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 400 Hz – 7.5 kHz
Coverage Angle 70° horizontal by 90° vertical (at 2 kHz and averaged 1 kHz – 4 kHz)
Included High-Pass Filter Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q) 10.9 (2 kHz)
Directivity Index (DI) 10.4 (2 kHz)
Power Rating 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m) 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m) 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;123 dB cont ave. (129 dB peak), 2 kHz, 15W input,8 ohm setting
Impedance 15W/70V, NC/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 0.9W/100V, 1.9W/100V tap:5332 ohms 8 ohms at 8 ohm direct setting
Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W 100V: 15W, 7.5W, 3.8W, 1.9W
Drivers 33 mm (1.3 in) diameter with phenolic diaphragm
Horn Material ABS
Mounting Hardware Stainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel exterior hardware.
Color RAL9016 (horn and bracket)
Input Connectors 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Outdoor Capability IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency Ratings Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment”
Dimensions (H x W x D) 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in) horn 181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in) including mounting bracket. Depth excludes cable exit.
Net Weight (each) 3.0 lb/1.36 kg
Shipping Weight (ea) 3.7 lb/1.68 kg
Included Accessories Stainless steel mounting bracket
