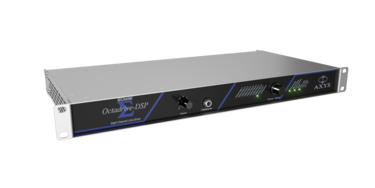

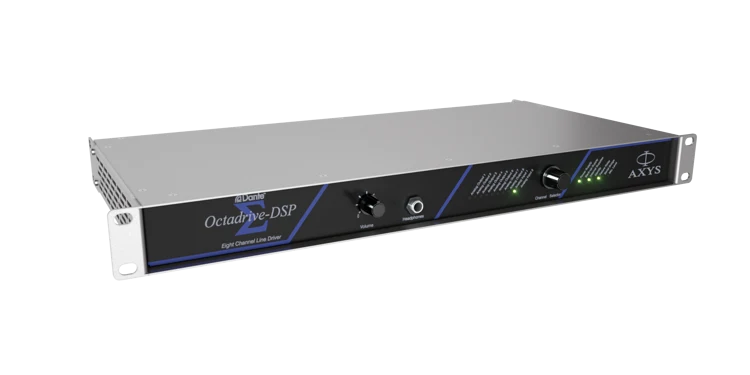

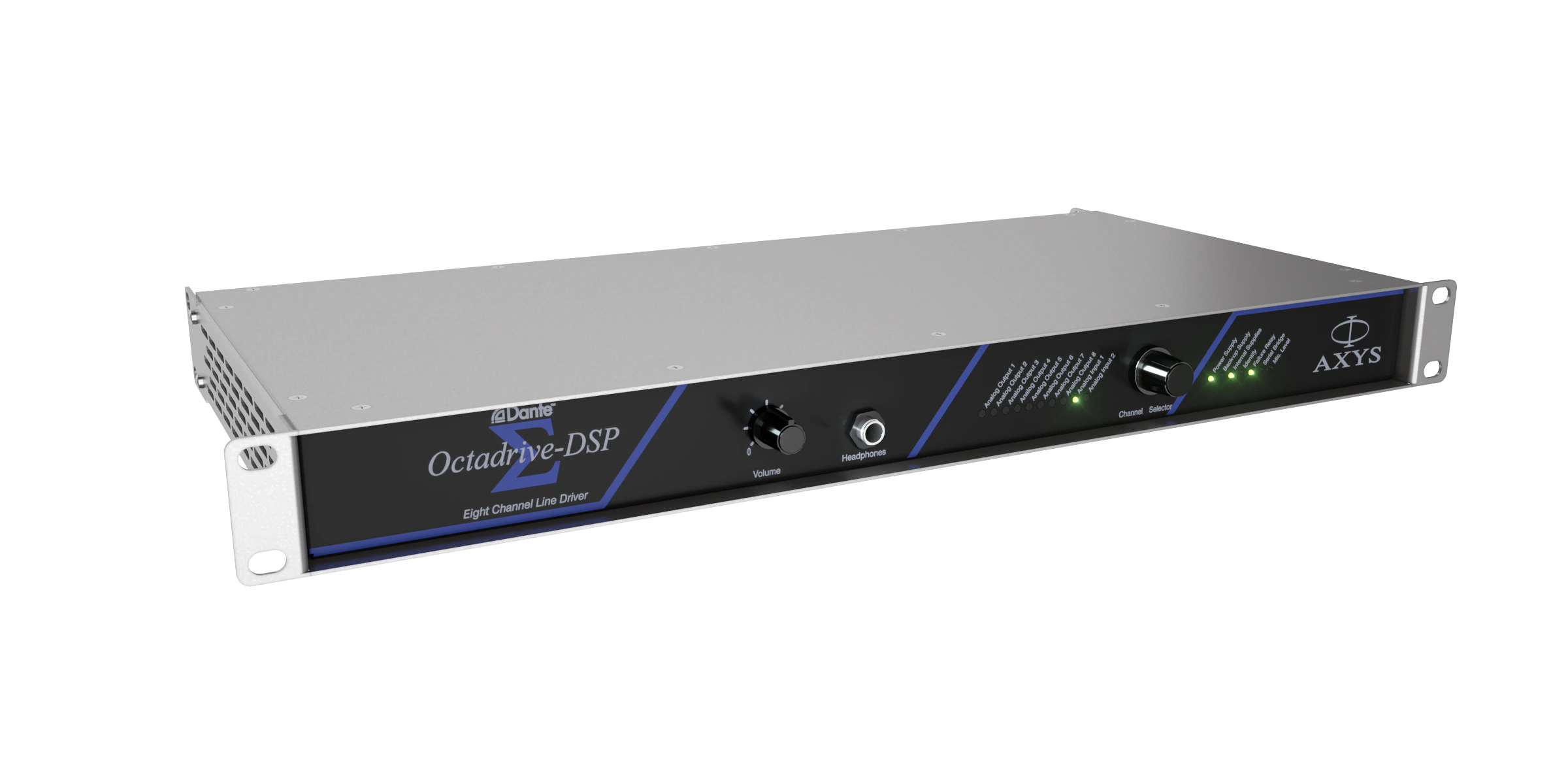

The Octadrive DSP-DN has integral 32-bit audio digital processing and a bi-directional DANTE™ interface. The unit may thus act as an audio Analogue break-in function/distribution amplifier with the added advantage of highly configurable on-board signal processing, or form part of a DANTE™ based audio system, with all inputs and outputs being in the digital domain. In this case, the analogue connectivity can be used as an emergency backup signal path, in the event of failure of the digital audio sources. The DSP (Digital Signal Processing) allows control of gain, EQ and delay for each input and output. Control of the DSP functions are via AXYS’s WinControl software, which uses DANTE™ control data capacity for communications.

The Octadrive DSP-DN (DANTE™) is Audinate Dante Domain Manager™ (DDM) Ready.


  Version Language Size Uploaded
file type icon AXYS Octadrive DSP-DN (Dante) Datasheet Rev 3.0
en updated: Feb 2024
  en  1.37 MB Feb 2024
file type icon AXYS Octadrive DSP-DN (Dante) Installation & User Manual Rev 3.1
en updated: Feb 2024
  en  1.36 MB Feb 2024
platform icon WinControl
updated: Jun 2020
    Jun 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • 2 analogue audio inputs and 8 analogue audio outputs (all transformer coupled)
  • Ambient Noise Sensing (ANS) / Paging mic input
  • Mic capsule monitoring
  • 16 digital audio inputs via DANTE™
  • 18 digital audio outputs via DANTE™
  • 16 x 8 Audio Matrix Router (any Input(s) to any Output(s))
  • Pilot tone monitoing on all inputs
  • Pilot tone generation on all outputs
  • Adjustment of per-input level, EQ and delay
  • Adjustment of per-output level, EQ and delay
  • DSP-based autogain and compression algorithms
  • Control and monitoring via DANTE™ using WinControl software
  • DANTE™ interface is fully redundant for both digital audio and control data
  • Built-in headphone amplifier for monitoring purpose


WinControl Service | Axys Speaker System Control Software
WinControl Service Main photo
Larger Images

WinControl Service edition of software is a windows based software. It allows full control and monitoring of the entire audio system from a central point, plus full control and configuration of the AXYS components. Inclusion of Cerberus units extends the scope of the monitoring to include third-party components.

All AXYS DANTE™ enabled devices offer control as well as multichannel digital audio transport over Ethernet. WinControl offers the system supervisor a user-friendly GUI overview of the whole audio system, with rapid access to every parameter of each system component. Faults are reported on-screen and recorded in an event log. Provided that Internet access is available, WinControl can be configured to generate email alerts in response to definable fault conditions.

The Wave Player plays uncompressed sound files recorded in .wav format at 48 kHz sample rate. The files may be of any duration, and can be set to continuously repeat if desired. An important feature of the Wave player is that a pilot tone may be permanently enabled at the audio outputs. The frequency and level of the tone is adjustable. Other AXYS system components (and some third-party equipment) then monitors the pilot tone to confirm the validity of the audio routing.

Mutli-level password protection is provided as part of WinControl; typically there is a “view only” level, allowing system status to be observed, a “user” level permitting component configuration, etc., and a “service” level which would normally only be available to suitably qualified personnel.

To remove all possibility of a single point-of-failure, two WinControl Servers may be installed (ideally in different locations), with divergent, redundant interconnection paths (a ring topology is common). Normally, both Servers would interface to the facility’s main SCADA, BMS, or other control and monitoring system. The external system then designates one as a master and the other as client. Only the master issues control commands, but both Servers perform the monitoring functions and log faults.

A multi-function external control port allows WinControl to be interfaced to external SCADA, BMS or other control systems. This can be used to trigger messages, request status reports from other system components, mute/unmute selected amplifiers and/or loudspeakers, load specific configuration pre-sets into amplifiers or loudspeakers, etc.

WinControl communicates with other AXYS products via either RS-485 or DANTE™

The software has multiple, password-protected access levels.

The latest version of WinControl is available for immediate use or evaluation.

  • Provides control/monitoring of an entire distributed audio system
  • Full fault logging with alerts
  • Incorporates message store for announcements (Wave Player)
  • Interface with system components via RS-485 or DANTE™
