Octadrive (discontinued)

Analogue Break-In, Break-Out Device

Larger Images

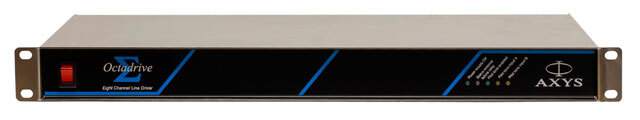

The AXYS® Octadrive is essentially a special-purpose two input, eight output audio distribution amplifier. It has been specifically designed as a line driver, to allow high quality analogue audio to be sent over long cable runs. It incorporates a number of fail-safe features, making it very reliable and suitable for use in critical life-safety situations.

As well as fixed installations, it has applications in broadcast (particularly OB) and live sound, where it is especially suited for driving stage-located amplifiers from the FOH mix position in large venues.

Downloads

  Version Language Size Uploaded
Octadrive Installation & User Manual
en updated: Jun 02, 2016
  en  1000 KB Jun 02, 2016
Software
WinControl
updated: Jun 29, 2020
    Jun 29, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Eight independent, low impedance transformerbalanced outputs
  • Two transformer-balanced main inputs
  • Eight additional direct inputs (impedance balanced),one per output
  • +20 dBV headroom drive capability @ 0 dBV nominal
  • Input pilot tone detection
  • Internal pilot tone generator, routed to outputs
  • Surveillance/failure relay
  • Fail-safe hardware bypass function
  • Universal power supply (100-240 VAC)

Accessories

WinControl Service | Axys Speaker System Control Software
WinControl Service Main photo
Larger Images

WinControl Service edition of software is a windows based software. It allows full control and monitoring of the entire audio system from a central point, plus full control and configuration of the AXYS components. Inclusion of Cerberus units extends the scope of the monitoring to include third-party components.

All AXYS DANTE™ enabled devices offer control as well as multichannel digital audio transport over Ethernet. WinControl offers the system supervisor a user-friendly GUI overview of the whole audio system, with rapid access to every parameter of each system component. Faults are reported on-screen and recorded in an event log. Provided that Internet access is available, WinControl can be configured to generate email alerts in response to definable fault conditions.

The Wave Player plays uncompressed sound files recorded in .wav format at 48 kHz sample rate. The files may be of any duration, and can be set to continuously repeat if desired. An important feature of the Wave player is that a pilot tone may be permanently enabled at the audio outputs. The frequency and level of the tone is adjustable. Other AXYS system components (and some third-party equipment) then monitors the pilot tone to confirm the validity of the audio routing.

Mutli-level password protection is provided as part of WinControl; typically there is a “view only” level, allowing system status to be observed, a “user” level permitting component configuration, etc., and a “service” level which would normally only be available to suitably qualified personnel.

To remove all possibility of a single point-of-failure, two WinControl Servers may be installed (ideally in different locations), with divergent, redundant interconnection paths (a ring topology is common). Normally, both Servers would interface to the facility’s main SCADA, BMS, or other control and monitoring system. The external system then designates one as a master and the other as client. Only the master issues control commands, but both Servers perform the monitoring functions and log faults.

A multi-function external control port allows WinControl to be interfaced to external SCADA, BMS or other control systems. This can be used to trigger messages, request status reports from other system components, mute/unmute selected amplifiers and/or loudspeakers, load specific configuration pre-sets into amplifiers or loudspeakers, etc.

WinControl communicates with other AXYS products via either RS-485 or DANTE™

The software has multiple, password-protected access levels.

The latest version of WinControl is available for immediate use or evaluation.

  • Provides control/monitoring of an entire distributed audio system
  • Full fault logging with alerts
  • Incorporates message store for announcements (Wave Player)
  • Interface with system components via RS-485 or DANTE™
